FUEL PUMP - This pressure gauge set can be used to test fuel pump pressure, emission control devices, leaky, stuck open or burnt valves. Clogged muffler, turbo or exhaust system. Helps to locate leaks in the gas line, valve timing, worn out rings and seals, heating and air conditioning components.

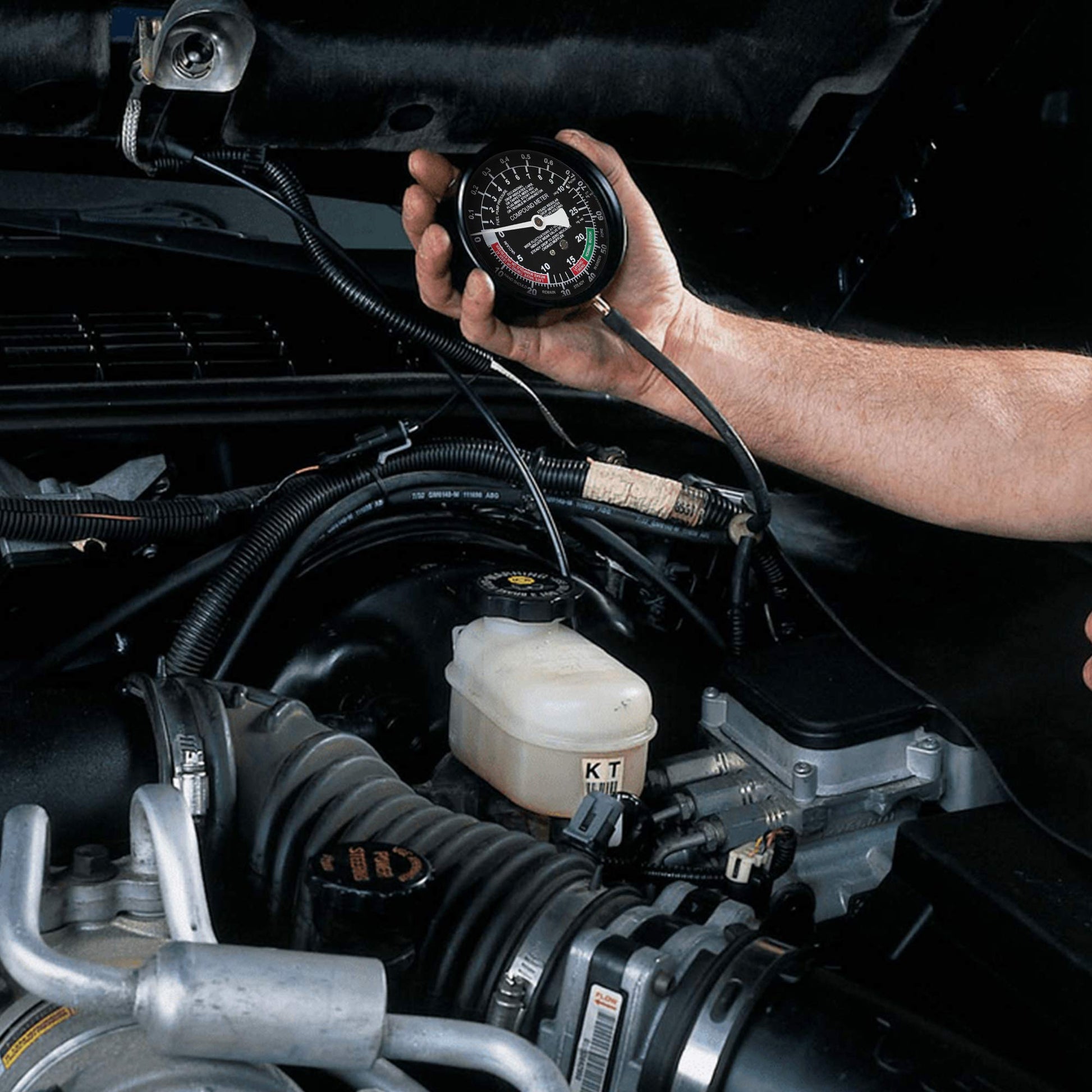

CAR VACUUM TESTER - Also can be used for testing engine vacuum lines, brake assist system, carburetor and intake manifold for leaks, vacuum or pressure loss. Set includes a variety of adapters suitable for most vehicles; Intended for carburetor engines with a mechanical fuel pump operating pressures below 10 PSI (0.7 Bar).

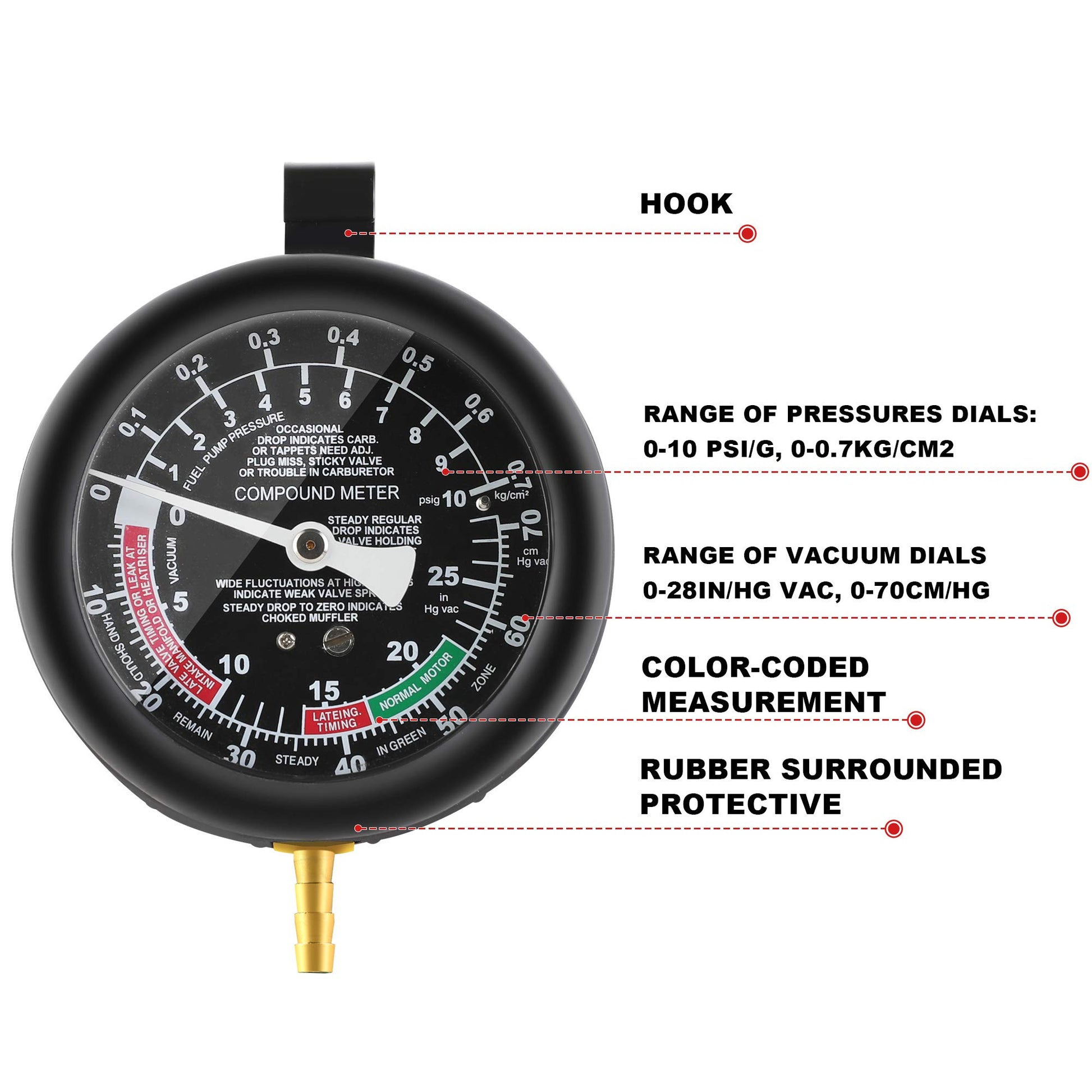

PRESSURE GAUGE - The gauge has 4 inches diameter large scale, color-coded measurement, rubber surrounded protective and a hook on the top. so it’s easy to read and use. Range of vacuum dials is 0-28in/Hg Vac, 0-70cm/Hg; Range of pressures dials is 0-10 psi/g, 0-0.7 kg/cm2.

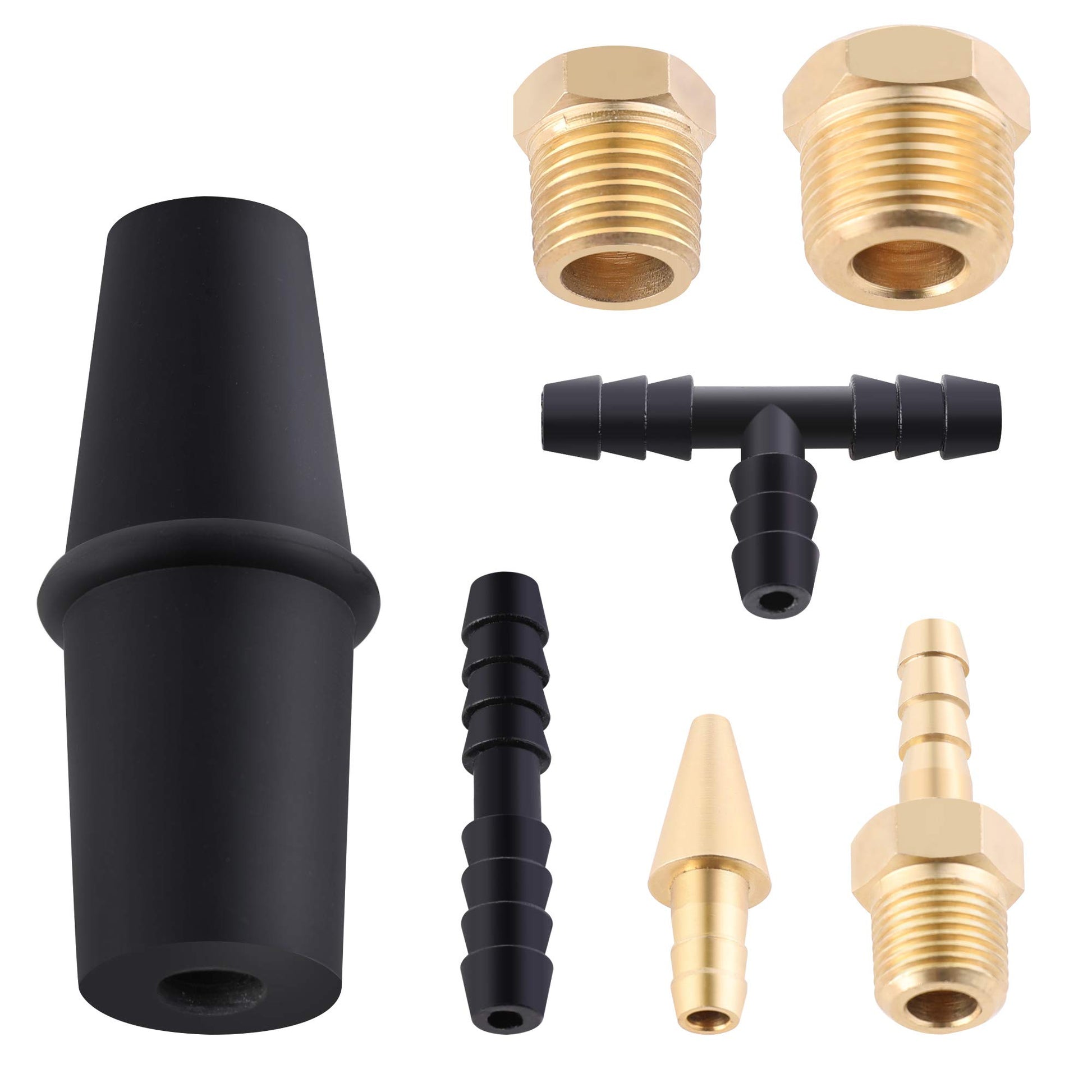

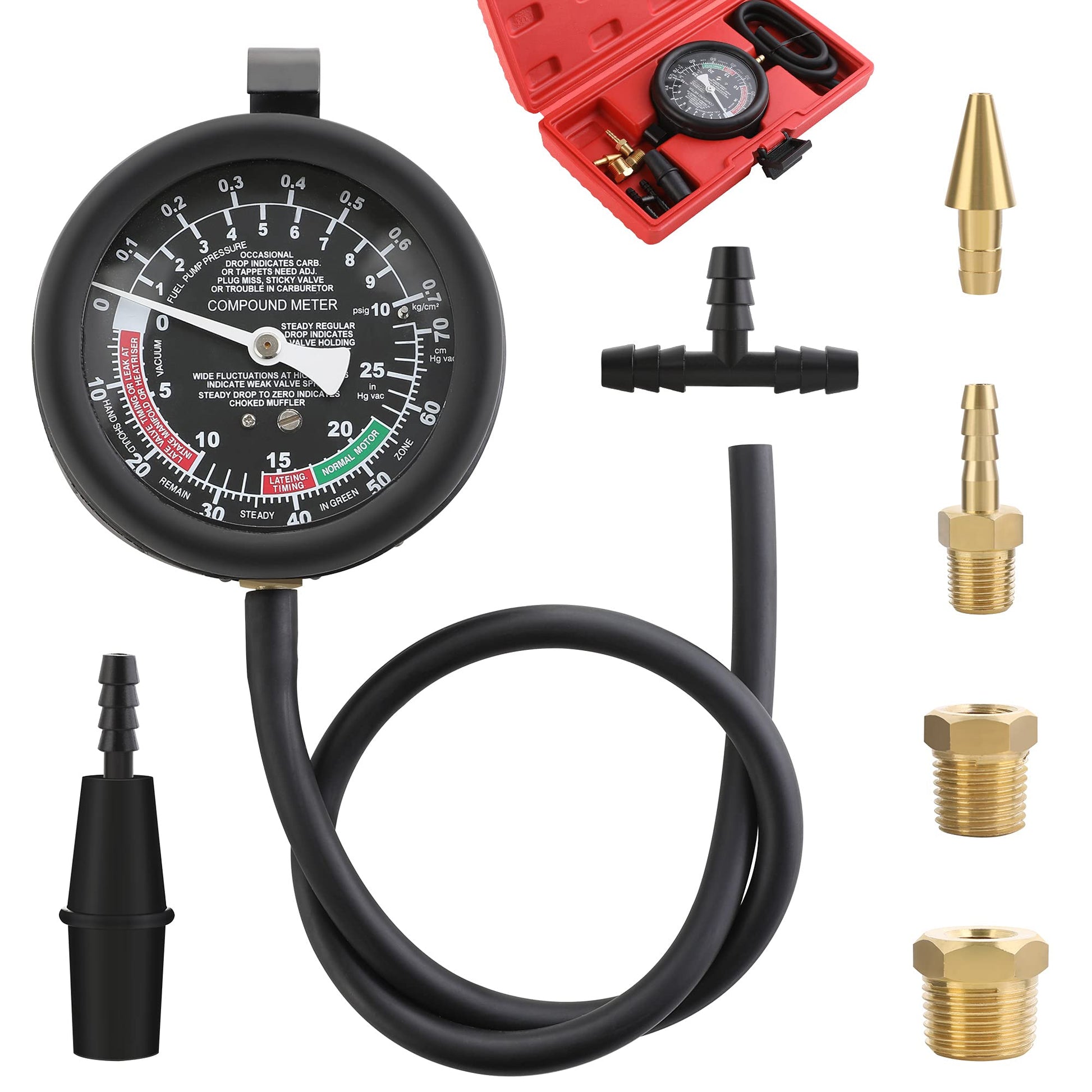

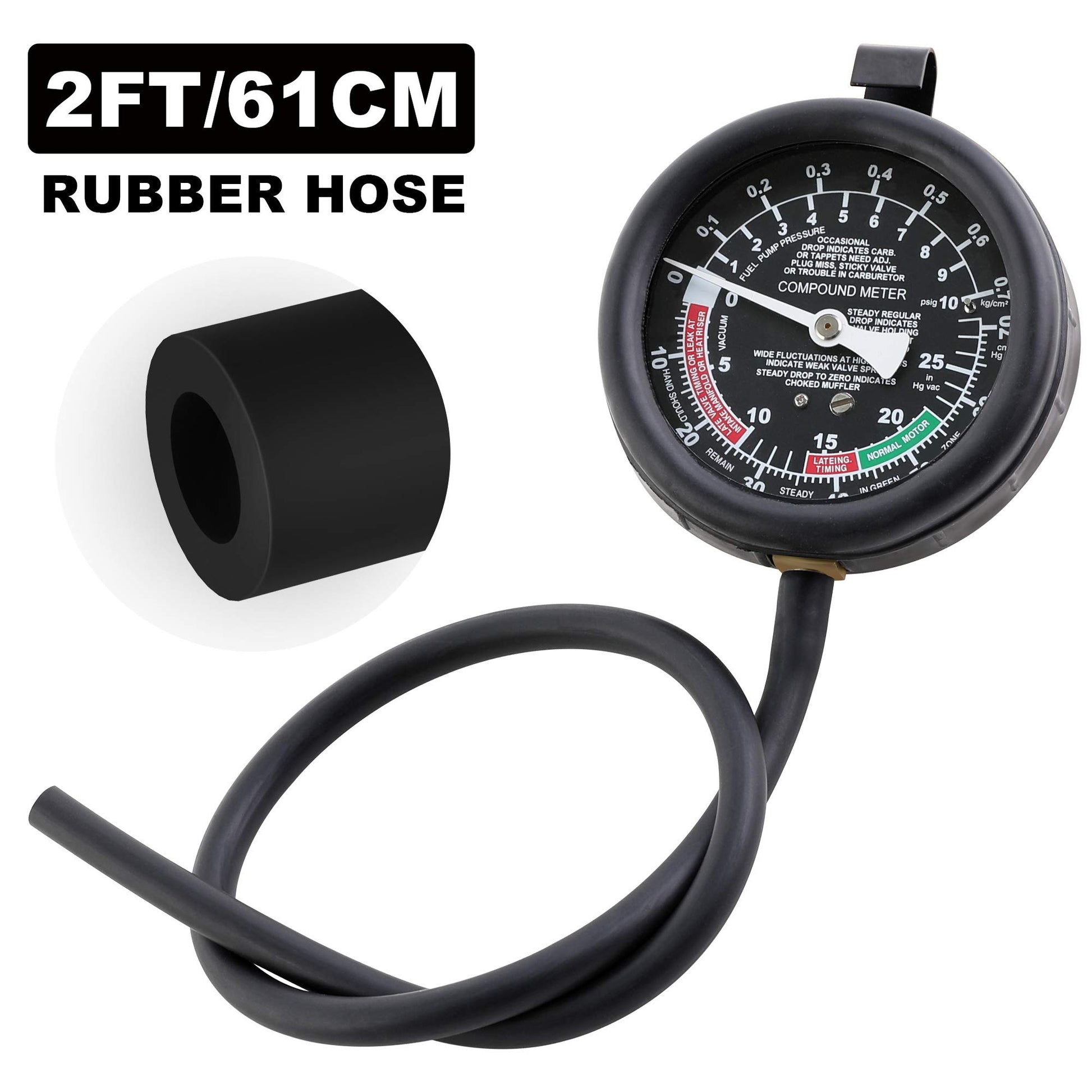

HOSE AND ACCESSORIES - The kit comes with a 2ft/61cm rubber hose (13/64-inch ID and 23/64-inch OD). The max working pressure is 40PSI. Other accessories include (1)conical adapter, (1)plastic connector, (1) 1/4”x18 male to 1/8”-27 female adapter, (1)1/8”-27 male to 7/32”barbed fitting adapter, (1)1/8”-27 female to 3/8”male adapter, (1)T-type 7/32”barded fitting adapter.

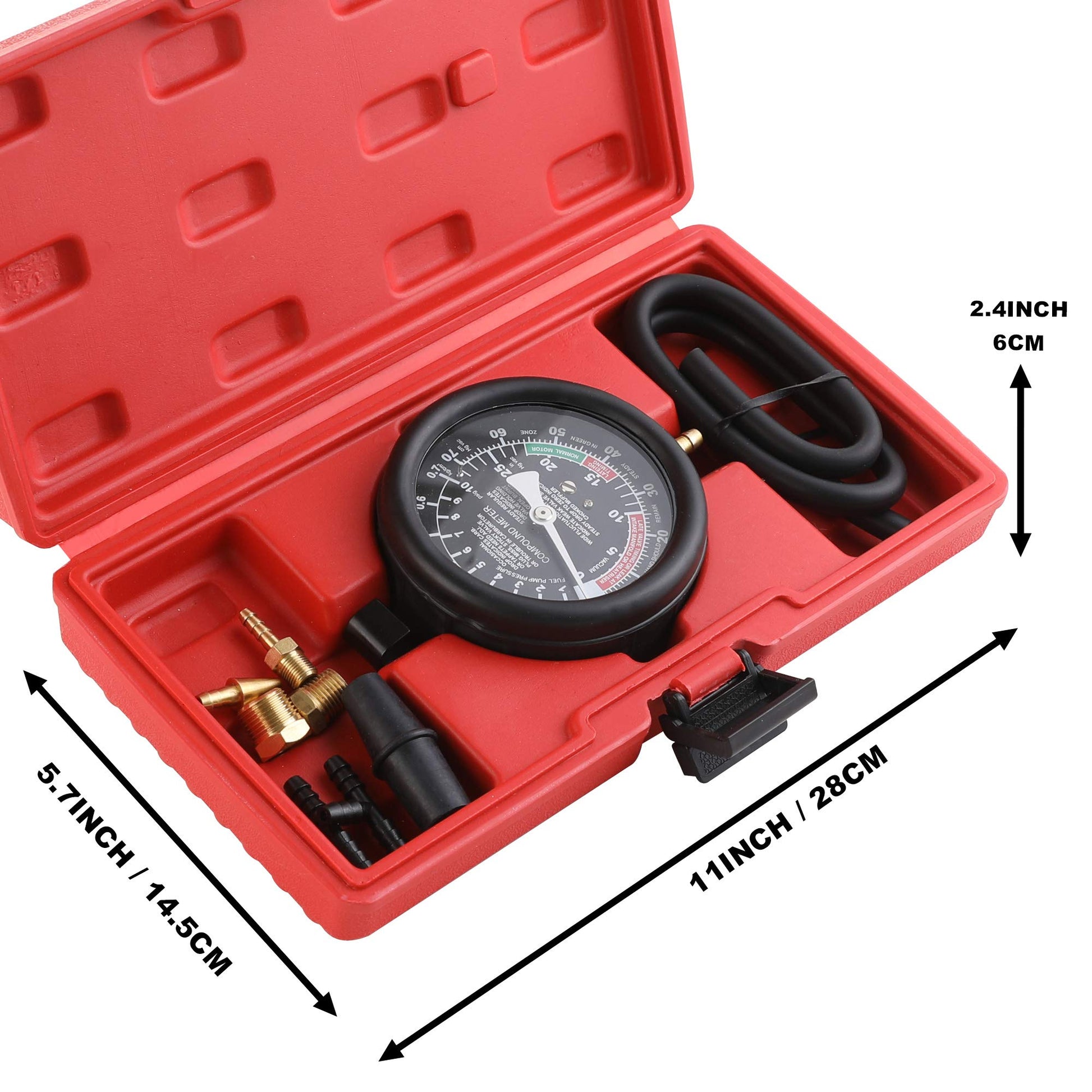

EASY STORAGE - Heavy-duty 11”x 5.7”x 2.4”inch (28cm x 14.5cm x 6cm) plastic blow-molded carrying case for easy transportation, safe storage, and quick organization.
