Output voltage: 400000 v(Please pay attention to safety)

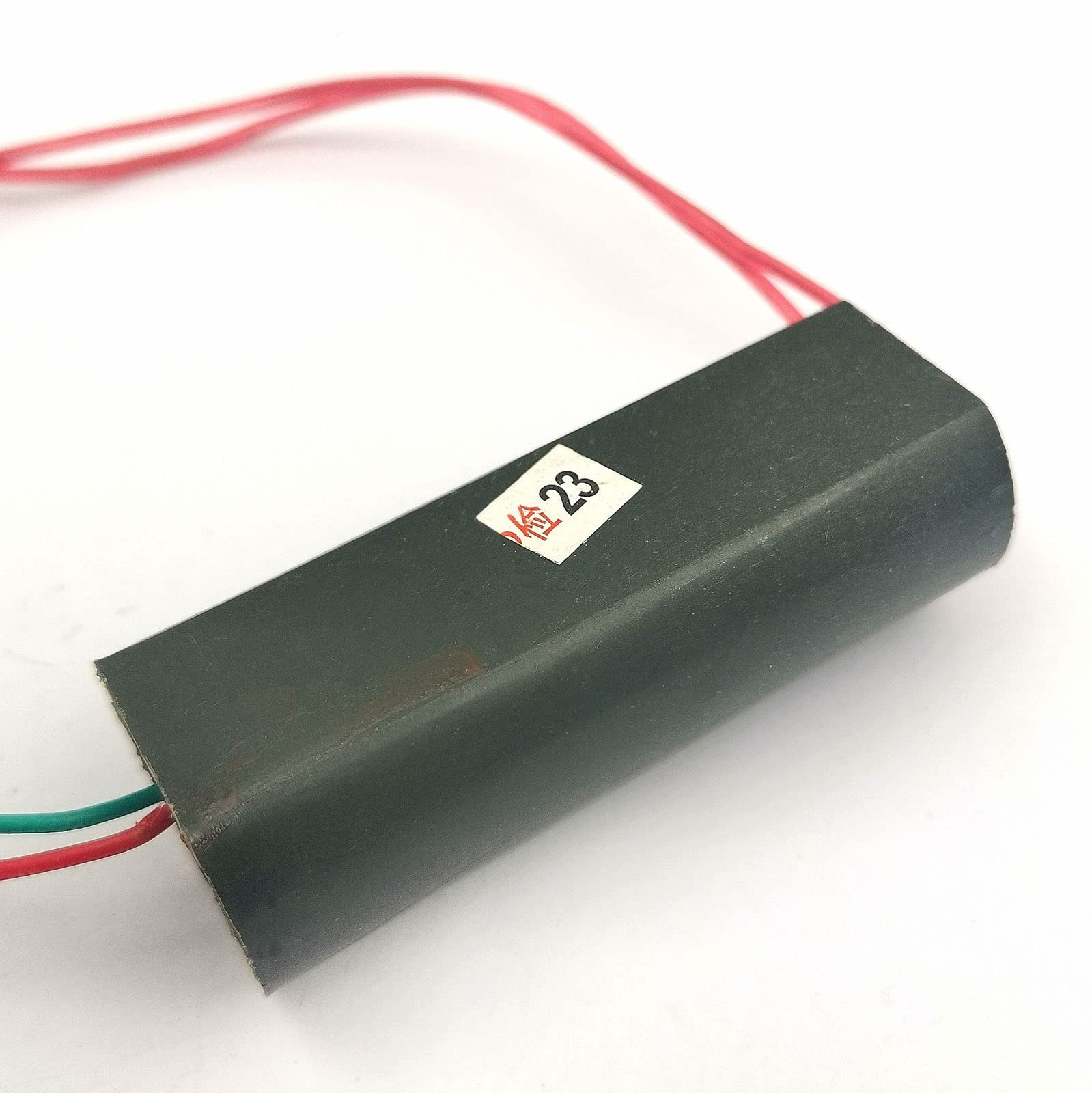

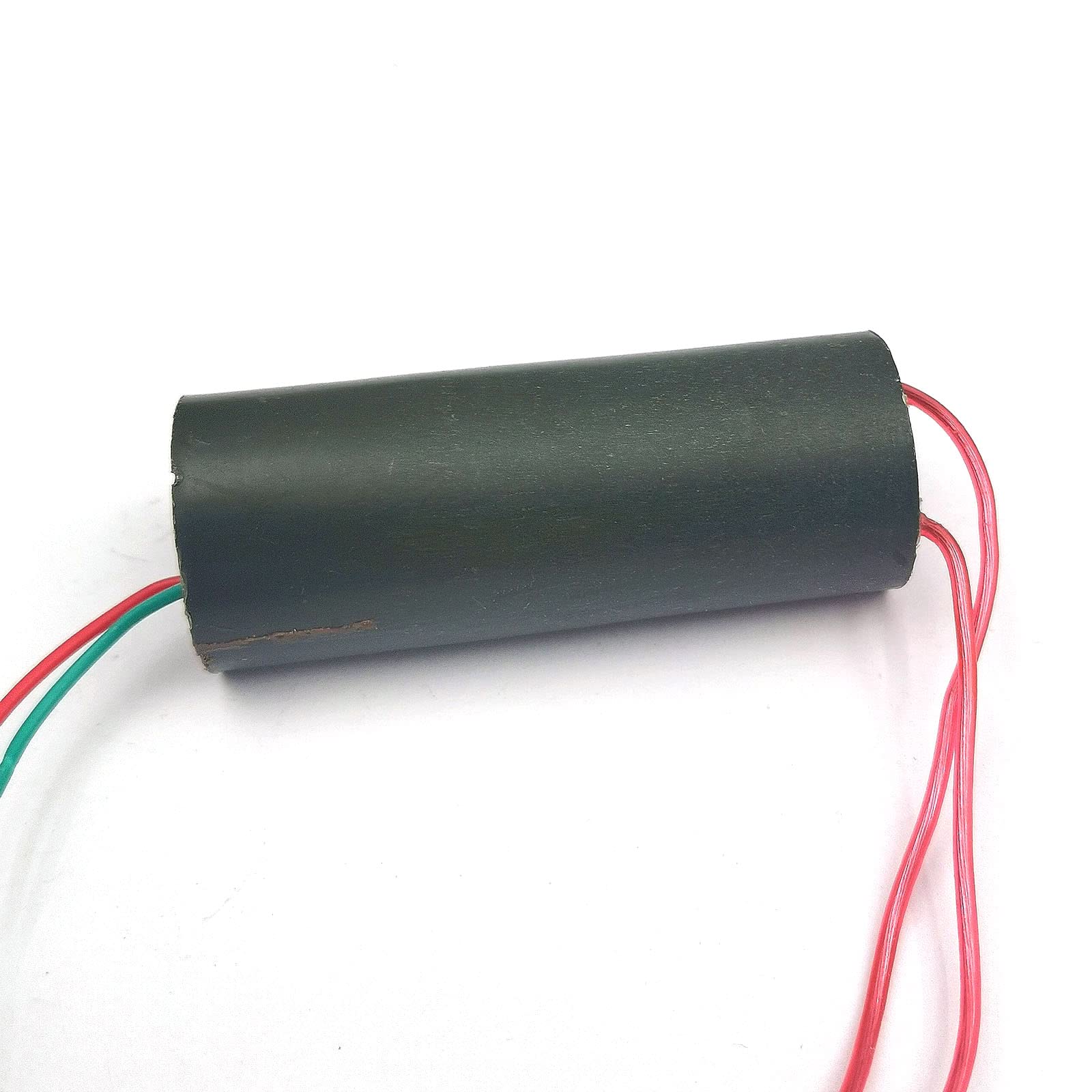

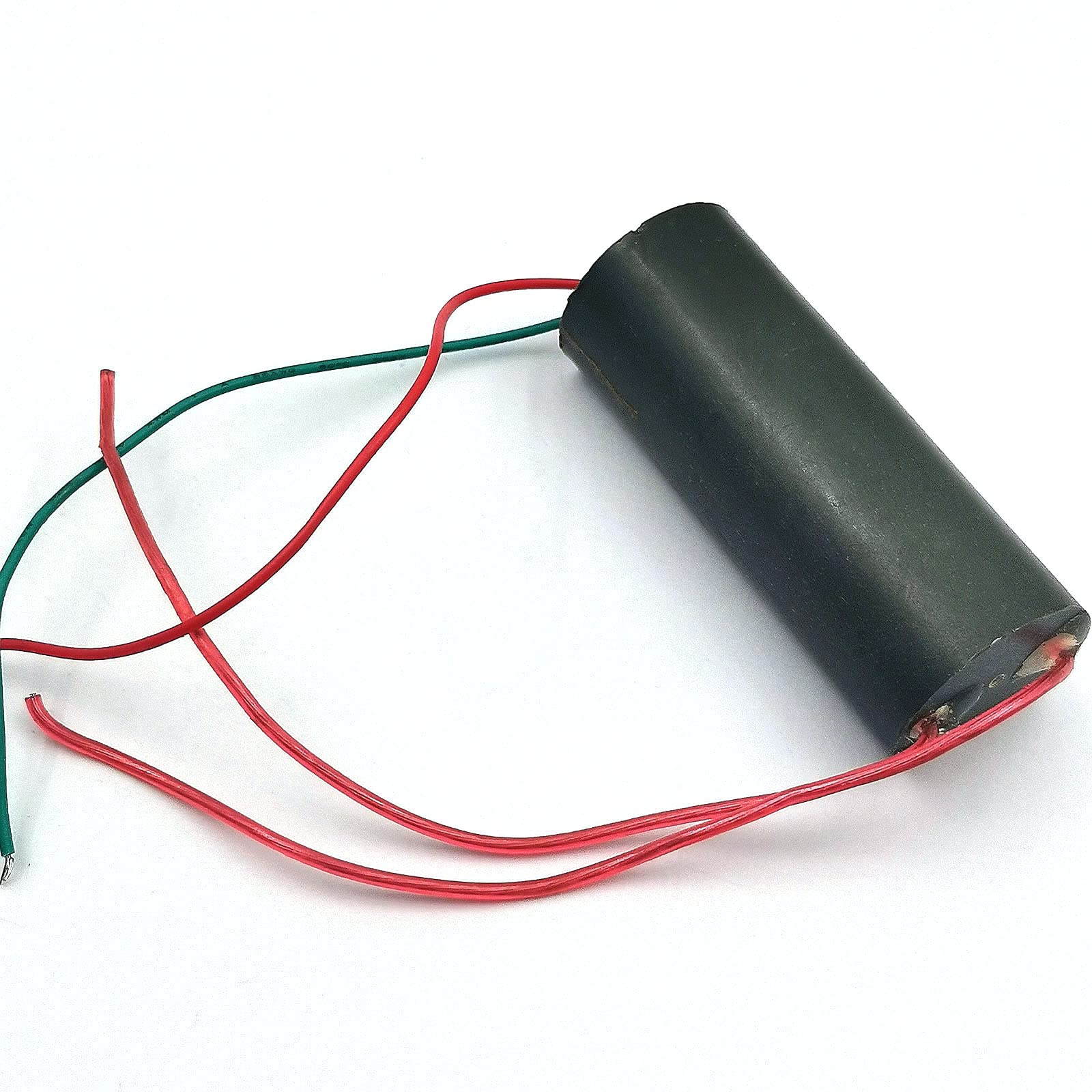

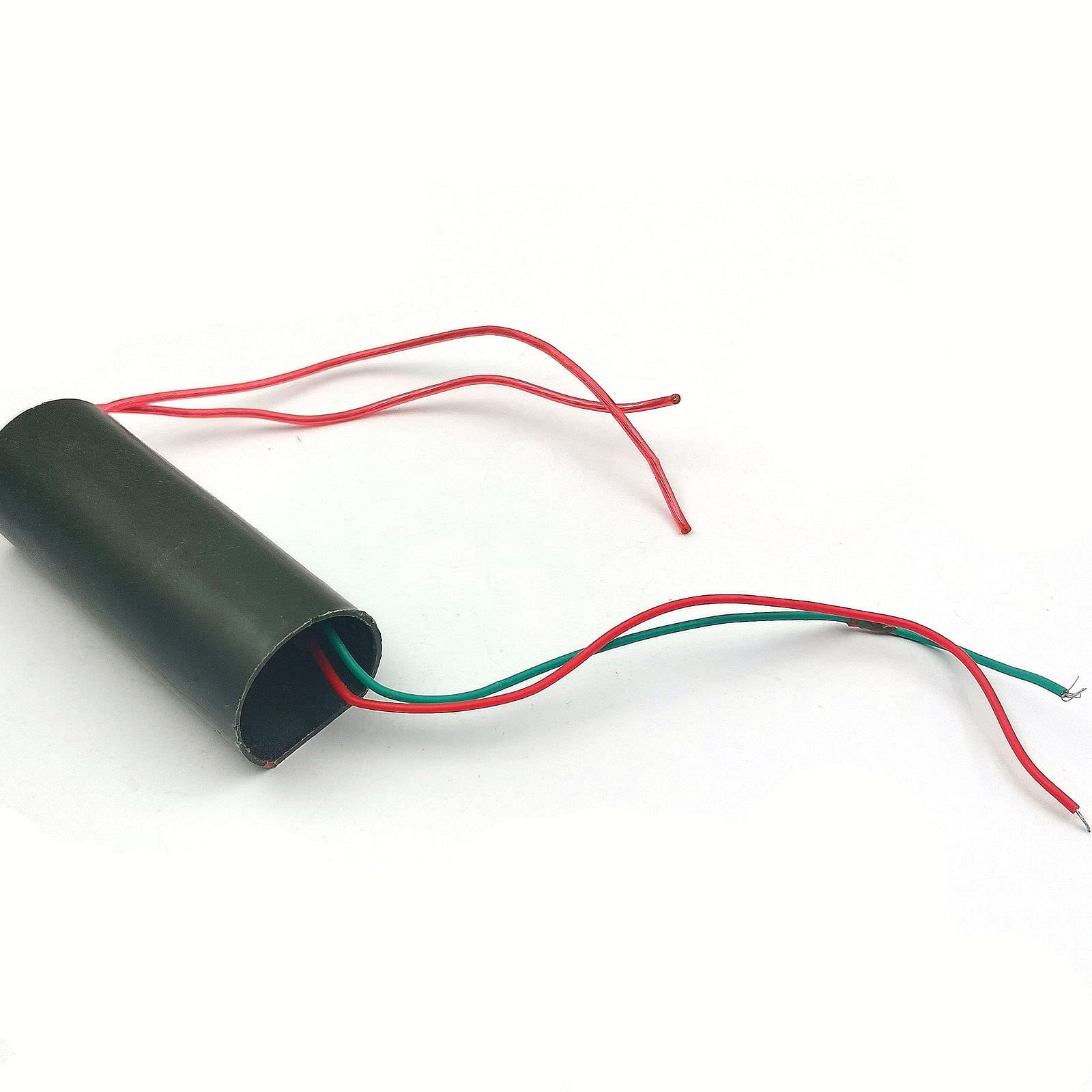

Packgae include: 5pcs 400000V 400KV DC Boost Step Up Power Module
Details: Description:
input voltage: DC 3 V to 6 V
Input current: 2 A- 5 A
High pressure type: the type of pulse current
Output voltage: 400000 v
(Please pay attention to safety)
High pressure discharge distance between: 10 mm - 20 mm

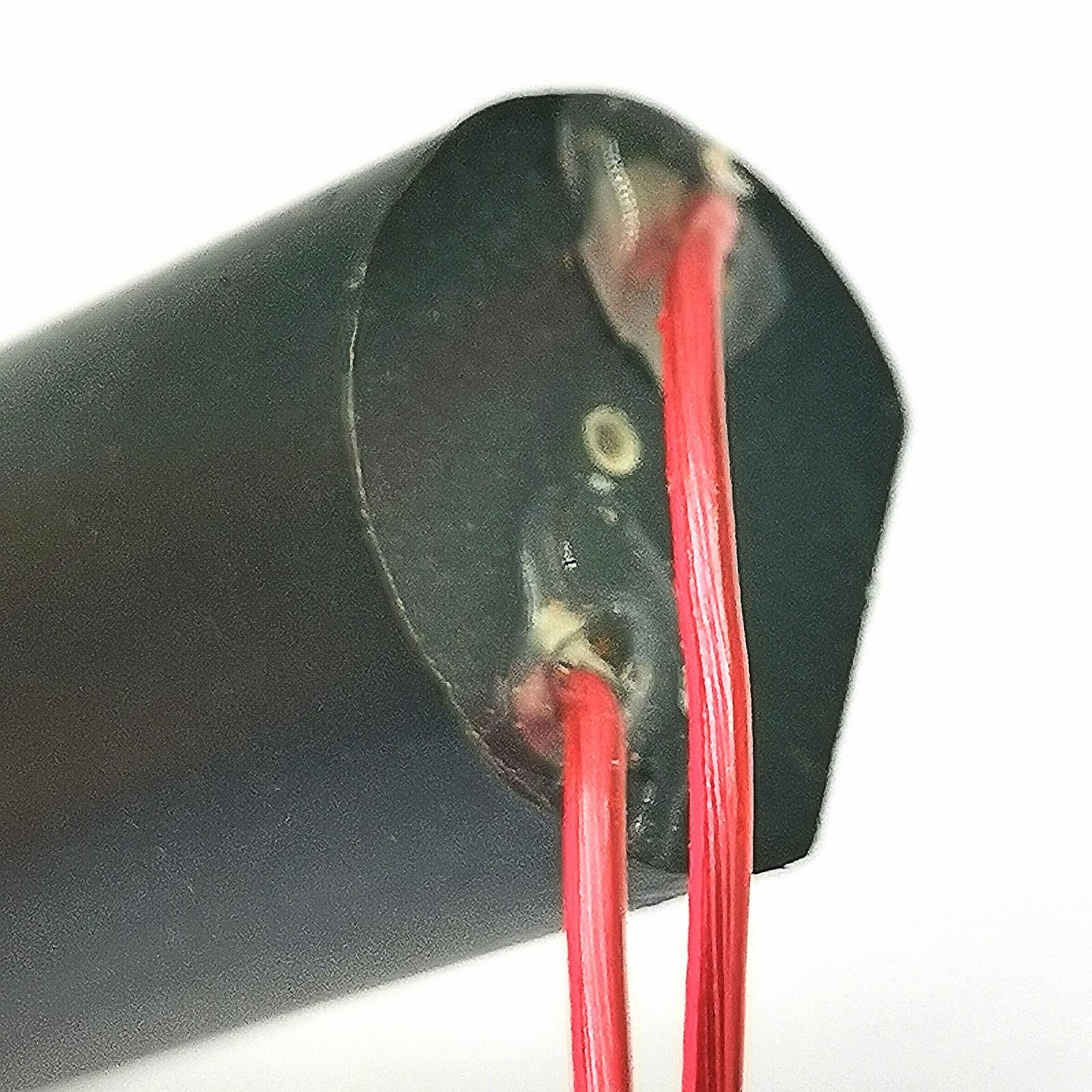

The output high voltage wire length: 100 mm

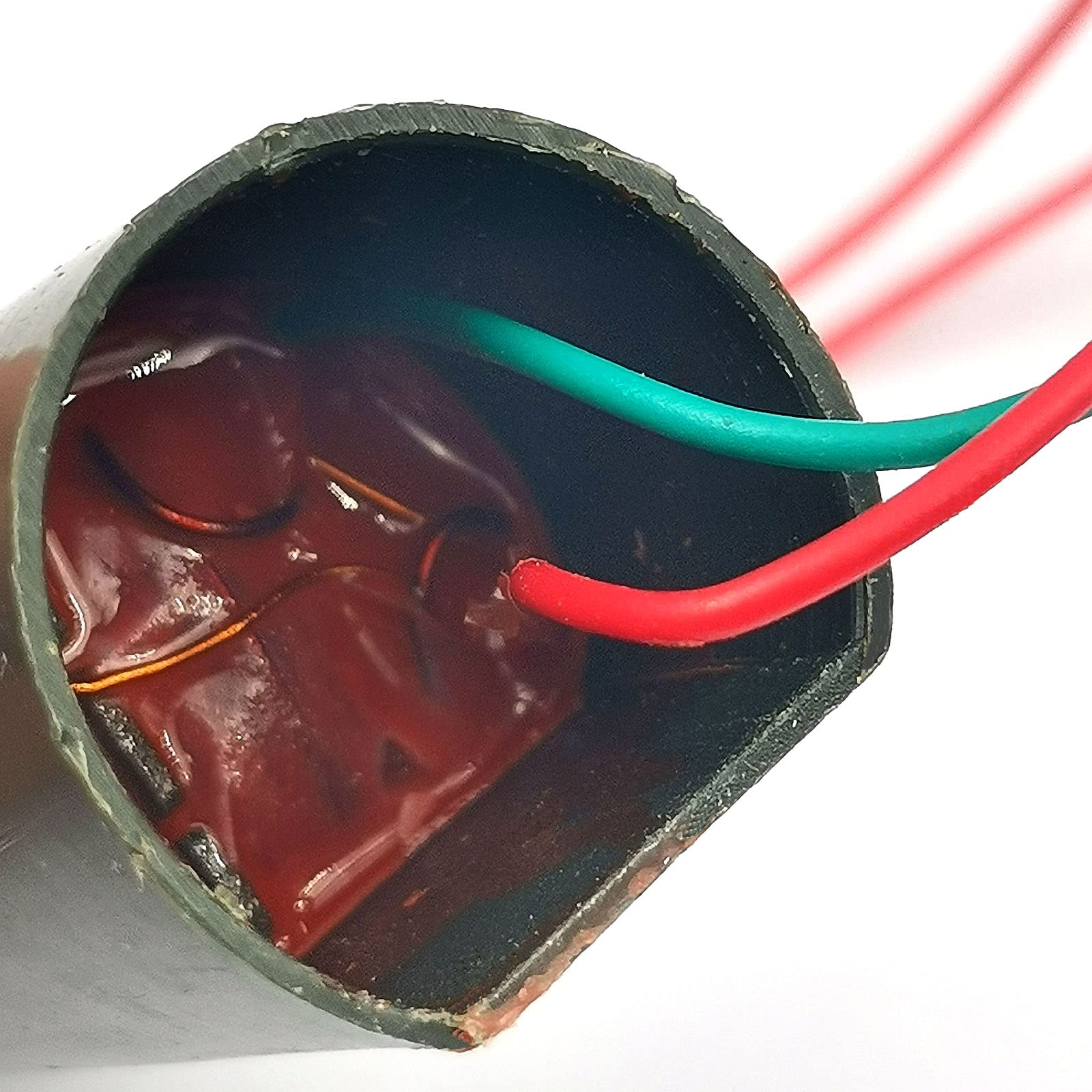

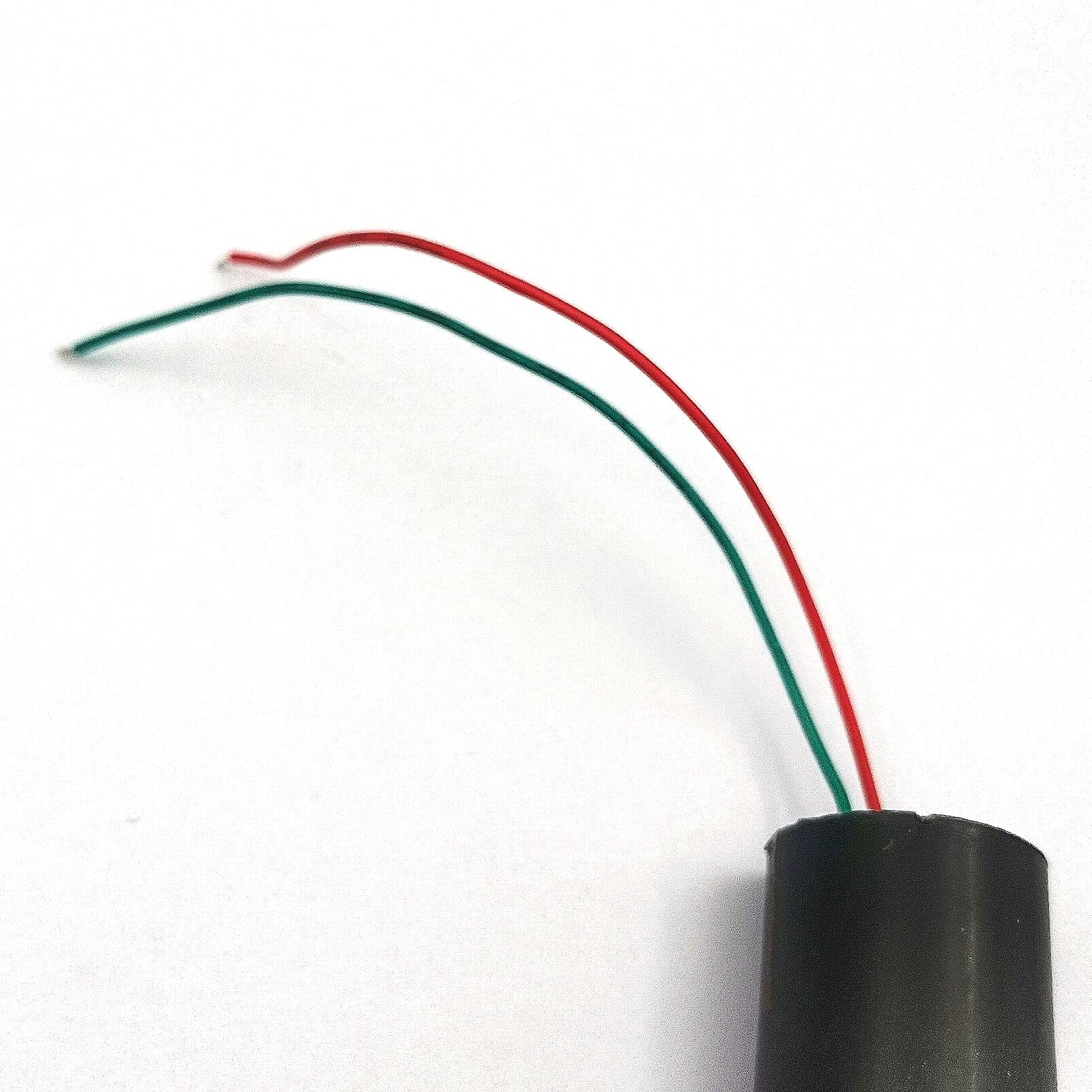

Input power cord length: 100 mm (the red line is positive)
Wiring: Red and green power connection red line:"+" green line "-"
output : the other side ,same color cable lease
notice: the high-voltage module should avoid the use of electricity in high voltage no-load .
(Power must be adjusted to a suitable distance to the high-voltage output line , battery capacity is proportional to the distance and the use of the high-pressure arc ( not a voltage as high as possible , you must provide enough current ) .
Experimental test of the arc distance from short to long , Do not exceed the maximum arc distance electricity, energy can not be released due to high pressure , can easily damage the module. )
Work: intermittent , continuous work does not allow more than 1 minute and the output side does not allow shorting .
Improper voltage and long working hours easily damaged module

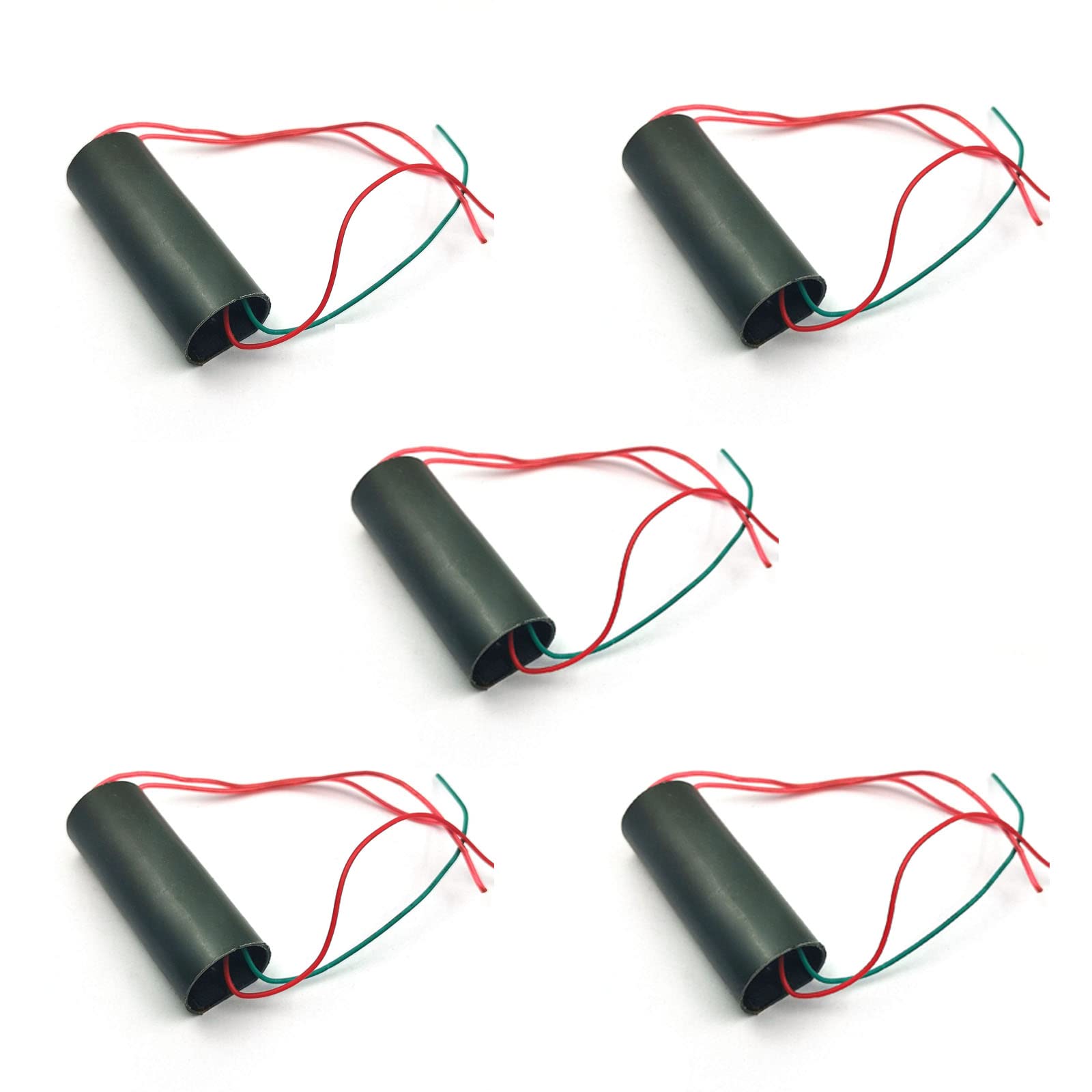

Package includes: 5pcs DC 3v-6v to 400kV 400000V Boost Step-up Power Module High-voltage Generator
